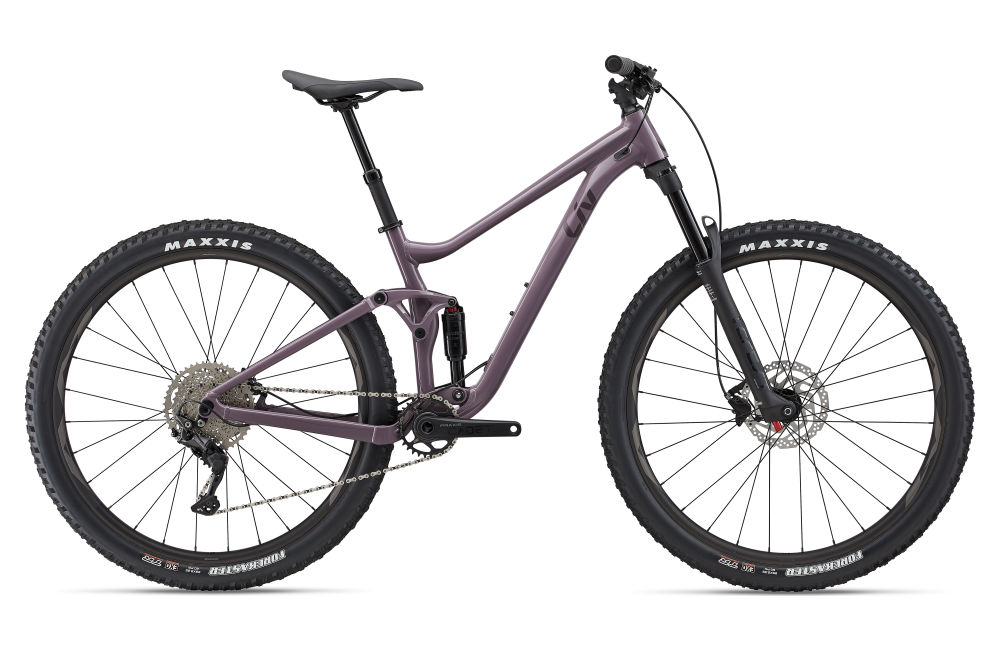

LIV EMBOLDEN 2 2022

Taglie

27.5": XS, 29": S, M

Colorazioni

Purple Ash

Telaio

ALUXX-Grade Aluminum, 120mm FlexPoint Suspension

Forcella

Giant Crest 34 RCL, 130mm, 15x110

Ammortizzatore

Suntour Raidon R, 184.15/44.45

Manubrio

Giant Connect Trail, alloy For 27.5: XS:730mm, S:750mm, M:750mm For 29: S:750mm, M:750mm, L:780mm

Attacco manubrio

Giant Contact For 27.5: XS:40mm, S:50mm, M:50mm For 29: S:50mm, M:50mm, L:60mm

Reggisella

Giant Contact Switch dropper, remote For 27.5: XS: 75mm travel / 30.9 x 295mm S: 100mm travel / 30.9 x 345mm M: 125mm travel / 30.9 x 395mm For 29: S: 100mm travel / 30.9 x 345mm M: 125mm travel / 30.9 x 395mm L: 125mm travel / 30.9 x 395mm

Sella

Liv Sylvia

Pedali

platform

Cambio

Shimano Deore M4100, 1x10

Deragliatore Anteriore

N/A

Deragliatore Posteriore

Shimano Deore M5120

Freni

Shimano BR-MT420, hydraulic, Shimano RT-26 rotors [F]180mm, [R]160mm

Comandi Freno

Shimano BL-MT201

Pacco Pignoni

Shimano Deore M4100, 11x46

Catena

KMC X-10

Guarnitura

Praxis Cadet Boost, 30t For 27.5: XS:165mm, S:170mm, M:170mm For 29: S:170mm, M:170mm, L:170m

Movimento Centrale

Praxis, press fit

Cerchi

For 27.5: Giant AM 27.5, tubeless ready, sleeve-joint rim, 30mm inner width For 29: Giant AM 29, tubeless ready, sleeve-joint rim, 30mm inner width

Mozzi

alloy, loose ball

Raggi

Sapim

Copertoni

For 27.5: [F] Maxxis Rekon 27.5x2.6 WT, EXO, TR, tubeless [R] Maxxis Ardent Race 27.5x2.6 WT, EXO, TR, tubeless For 29: [F/R] Maxxis Forecaster 29x2.35 WT, EXO, TR, tubeless

Extra

For 27.5: tubeless prepared, max tire size 2.6", max chainring size 32t For 29: tubeless prepared, max tire size 2.4", max chainring size 32t
