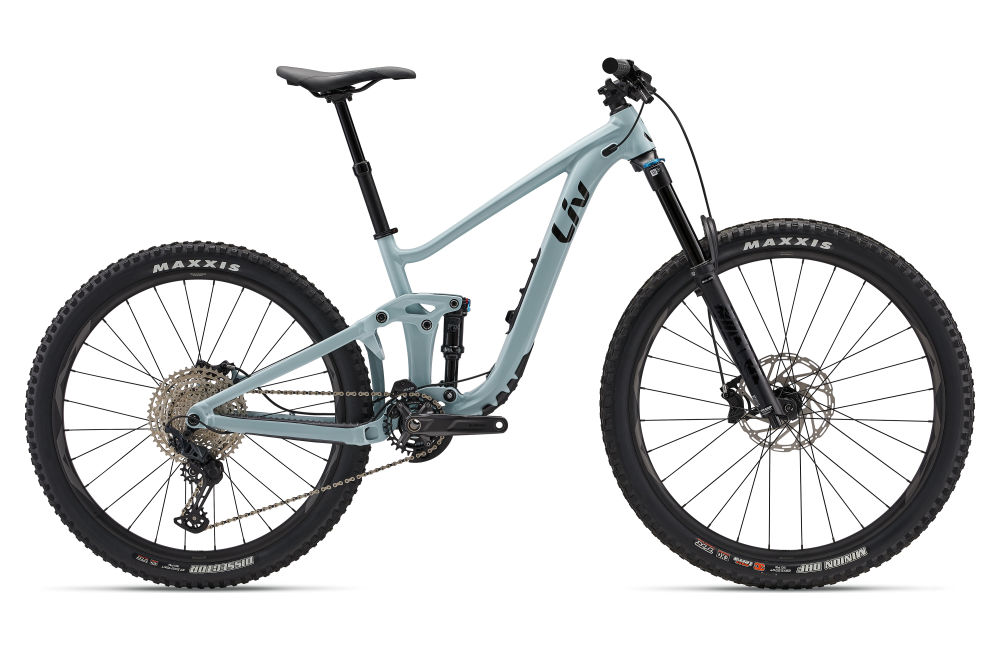

LIV INTRIGUE LT 1 2023

Taglie

XS, S: MX only M, L: 29"" F&R out of the box, MX compatible

Colorazioni

Soap Suds

Telaio

ALUXX SL-Grade aluminum front and rear triangles, 150mm Maestro Suspension, flip chip, integrated down tube storage

Forcella

Fox 36 Float Performance, 160mm, Grip damper, Boost, 15x110, Kabolt X, tapered, 44mm offset, custom tuned for Liv

Ammortizzatore

Fox Float DPS Performance 185/55, custom tuned for Liv

Manubrio

Giant Contact, 35mm, 20mm rise XS: 760mm, S: 760mm, M: 760mm, L: 780mm

Attacco manubrio

Giant Contact TR35, 35mm XS:40mm, S:50mm, M:50mm, L:50mm

Reggisella

Giant Contact Switch dropper, remote XS: 100mm travel / 30.9 x 345mm S: 125mm travel / 30.9 x 395mm M/L: 150mm travel / 30.9

Sella

Liv Sylvia

Pedali

platform

Cambio

Shimano SLX M7100 , 1x12

Deragliatore Anteriore

N/A

Deragliatore Posteriore

Shimano SLX M7100, Shadow +

Freni

Tektro M750, Hydraulic Disc [F] 203mm [R] 180mm

Comandi Freno

Tektro HDM-750

Pacco Pignoni

Shimano Deore, 10x51

Catena

KMC X-12

Guarnitura

Shimano M511, 30t, 55mm chainline XS: 165mm, S: 170mm, M: 170mm, L: 170mm

Movimento Centrale

Shimano, press fit

Cerchi

Giant AM, tubeless ready, sleeve-joint, 30mm inner width XS/S: [F] 29, [R] 27.5 M/L: [F]29, [R]29

Mozzi

alloy

Raggi

stainless

Copertoni

[F] Maxxis Minion DHF 29x2.5WT, 3C Max Terra, EXO, TR, tubeless [R, size M and L] Maxxis Dissector 29x2.4WT, 3C Max Terra, EXO, TR, or [R, size XS and S] Maxxis Dissector 27.5x2.4WT, 3C Max Terra, EXO, TR, tubeless

Extra

MRP AMg CS chainguide, 3M tailgate protector, tubeless prepared, max tire size 2.5", max chainring size 32t
